Product Catalogue > UAV Flight Controller

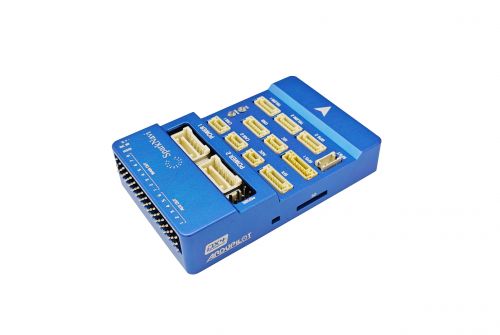

SparkNavi Blue
Flight Controller with Ardupilot and PX4
.jpg)
CE and FCC certifications are currently in the application process.
Design and Made in Taiwan
Pricing
$USD 352.00
(10+ units: $USD 340.00)
Bulk Purchase Discount Program: Purchase more than 10 units and enjoy exclusive discounted pricing.
UAV Manufacturing Enterprise Project: We offer tailored discount solutions for industry partners - welcome to contact our professional sales team for discussion.
Sales Agent Partnership Program: Providing exclusive agency benefits and comprehensive support services, please contact our professional sales team for details.
For quotations or further information, please contact our sales team: ethan@robotlab.com.tw
Product Features
Built-in High precision IMU
Pixhawk Stardand V6X
Ardupilot and PX4 Compatible
6061 aluminum-magnesium alloy housing
| Specification | |
| Processor | - 32-bit ARM Cortex M7 core with FPU - STM32H7 480 MHz / 2 MB Flash - STM32F1 IOMCU - TCXO |
| IMU | - IIM-42652 6-Axis MEMS IMU (GYRO Noise 2.8(mdps/rt-Hz)) - ICM-42688-P 6-Axis MEMS IMU (GYRO Noise 2.8(mdps/rt-Hz)) |
| Barometer | - SPL06-001 (resolution: 0.06 Pa) |
| Compass | - QMC5883L |

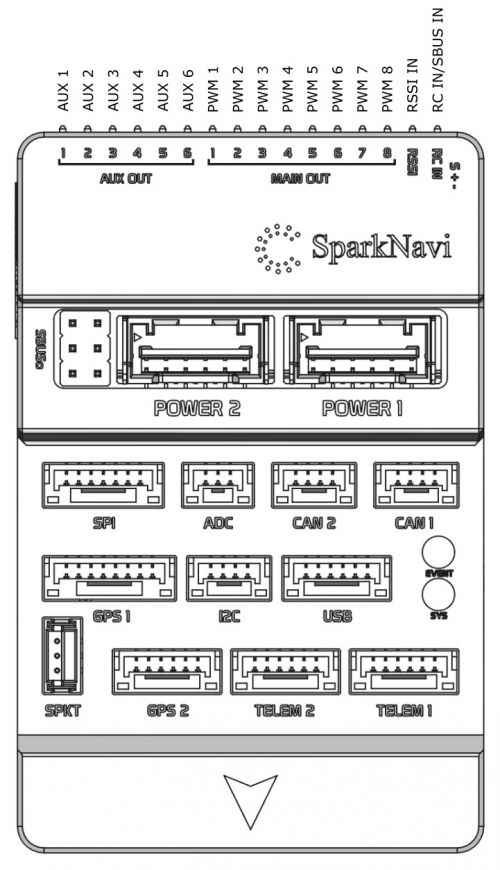

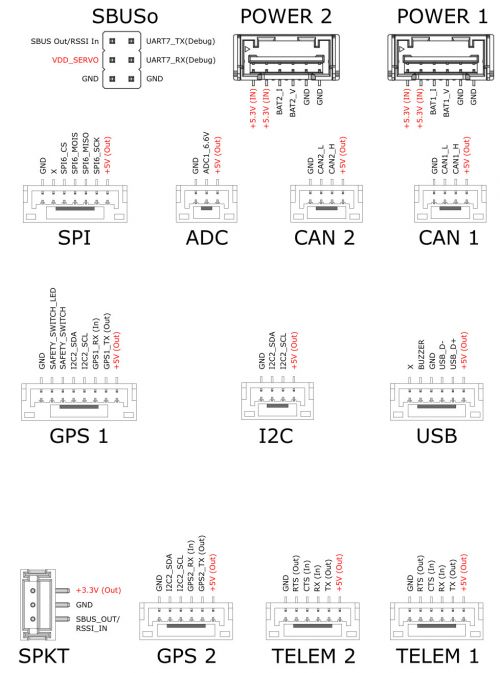

| Interfaces | - PWM 14 (PWM x 8, AUX x 6) - Telemetry x 2 - CAN x 2 - USB x 1 - I2C x 1 - SPI x 1 - GPS x 2 (GPS x 1 + UART x 1) - Futaba S.BUS input - PPM sum signal - RSSI Input - 3.3V and 6.6V ADC inputs |
| Dimensions | - Length: 74 mm - Width: 47.5 mm - Height: 16.95 mm |
| Weight | 70g |
| Place of origin | Design and Made in Taiwan |
Datasheet and Documents
